FEATURES
+ Choice of a low velocity or medium velocity burner
+ Long lifetime with Refractory (castable) on working temp up to1,500℃
+ Available for Preheated Air operation up to 450℃
+ For Kerosine, Diesel 0il , B-C Oil and Refined Oil
+ Suitable for all kind of oil LHV over 4,000Kcal / Kg
+ Fuel Capacity based on 400,000 ~ 5,300,000Kcal/hr oil and 20% excess air
+ Available automatic gas Pilot burner or manual ignition
APPLICATIONS
+ Heat treatment
+ Heating up
+ Al-melting
+ Glass melter
+ Rotary calciner
+ Steel reheat furnace
+ Rotary dryer

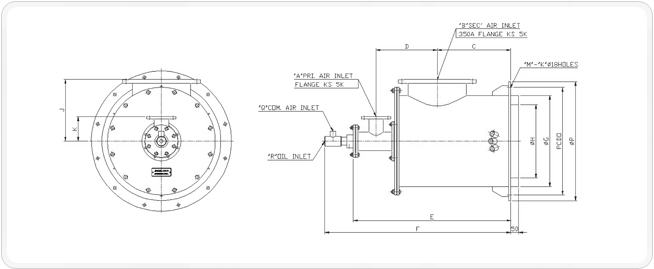

●JHOB Series Dimensions
| MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
K' |
N |
O |
P |
Q |
R |
| JHOB-100 |
55A |
150A |
320 |
300 |
750 |
890 |
406 |
250 |
300 |
150 |
32A |
8 |
18 |
25A |
510 |
560 |
15A |
15A |
| JHOB-200 |
80A |
200A |
320 |
300 |
750 |
890 |
406 |
250 |
300 |
150 |
32A |
8 |
18 |
25A |
510 |
560 |
15A |
15A |
| JHOB-300 |
80A |
250A |
350 |
325 |
815 |
955 |
457 |
350 |
320 |
150 |
32A |
8 |
18 |
25A |
540 |
600 |
20A |
15A |
| JHOB-400 |
80A |
300A |
400 |
350 |
890 |
1030 |
508 |
400 |
350 |
150 |
32A |
12 |
18 |
25A |
590 |
660 |
20A |
15A |
| JHOB-500 |
80A |
350A |
450 |
375 |
950 |
1080 |
559 |
450 |
390 |
150 |
32A |
12 |
18 |
25A |
660 |
710 |
25A |
20A |

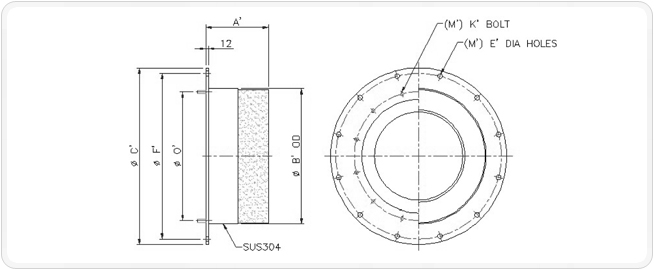

●JHOB Series Dimensions
| MODEL |
A' |
B' |
C' |
F' |
O' |
M' |
E' |
K' |
| JHOB-100 |
220 |
470 |
710 |
660 |
510 |
8 |
18 |
M14 X 35L |
| JHOB-200 |
220 |
470 |
710 |
660 |
510 |
8 |
18 |
M14 X 35L |
| JHOB-300 |
250 |
570 |
760 |
710 |
540 |
8 |
18 |
M14 X 40L |
| JHOB-400 |
290 |
620 |
810 |
760 |
590 |
12 |
22 |
M14 X 40L |
| JHOB-500 |
350 |
670 |
860 |
810 |
660 |
12 |
22 |
M14 X 40L |
|
