    HIGH MOMENTUM OIL BURNERS JHOB

    JHOB-100JHOB-200

    JHOB-300JHOB-400

    JHOB-500

    PDF DOWNLOAD

    FEATURES

    - Choice of a low velocity or medium velocity burner
    - Long lifetime with Refractory (castable) on working temperature up to 1,200℃.
    - Available for Preheated Air operation up to 350℃.
    - For Kerosine, Diesel oil.
    - Suitable for all kind of oil LHV over 4,000kcal/kg
    - Fuel Capacity based on 42,000 ~ 5,300,000kcal/hr oil and 20% excess air.
    - Available automatic gas Pilot burner or manual ignition.

    APPLICATIONS

    - Heat treatment.
    - Heating up.
    - Al-melting.
    - Steel reheat furnace.
    - Rotary dryer.

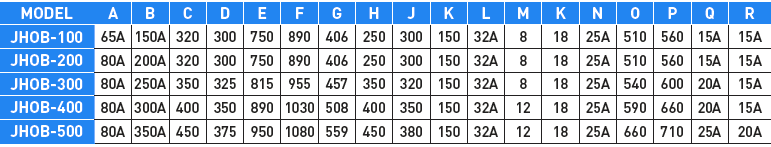

    DIMENSIONS

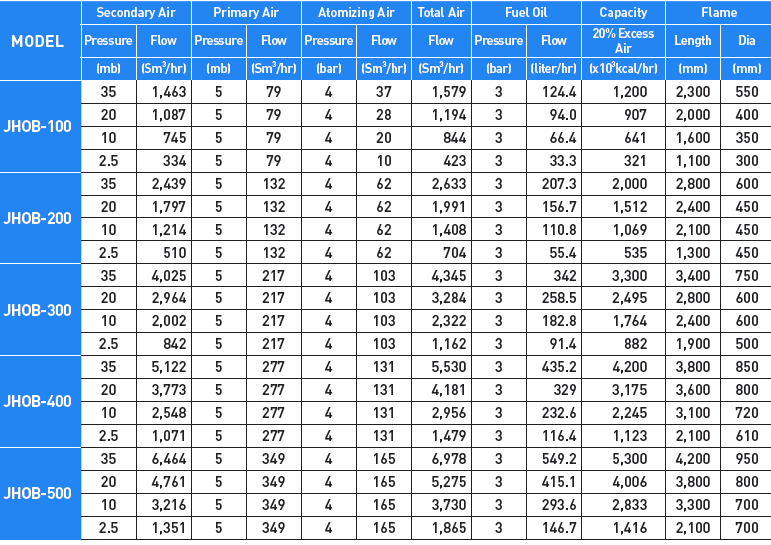

    TECHNICAL DATA


    The descriptions and specifications are subject to change without notice.

  • JOB

    NOZZLE MIX OIL BURNERS JOB

    JOB-040JOB-070

    PDF DOWNLOAD

    FEATURES

    - Choice of a low velocity or medium velocity burner.
    - Long lifetime with Refractory (castable) on working temperature up to 1200℃
    - Available for Preheated Air operation up to 350℃.
    - For Kerosine, Diesel oil.
    - Fuel Capacity based on 42,000 ~ 682,000 kcal/hr oil and 20% excess air.
    - Available automatic gas Pilot burner or manual ignition.

    APPLICATIONS

    - Heat treatment.
    - Heating up.
    - Al-melting.
    - Steel reheat furnace.
    - Rotary dryer.

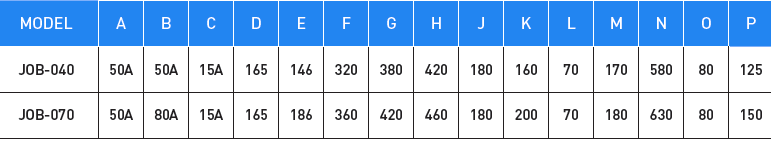

    DIMENSIONS

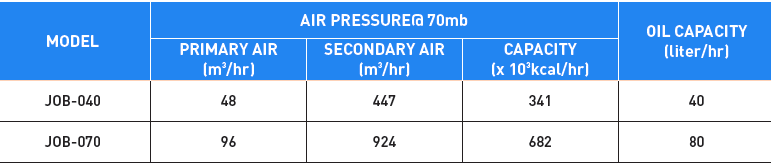

    TECHNICAL DATA


    Fuel Capacity based on 8,530 kcal/liter oil and 20% excess air.
    Air pressure is “total pressure” measured 6 pipe diameters from burner.
    Oil Pressure should be at least 0.35-0.7 bar at the burner.
    Capacities for preheated air operation will differ from those shown.

    The descriptions and specifications are subject to change without notice.
