Create Value, Lead the Future
We are becoming one of the global leaders in key future fuel combustion
control system based on our research and on key technologies.


Regenerative Burner

HOME


  • JSRJSR
  • JRB-RTJRB-RT
  • JSR

    REGENERATIVE GAS BURNERS JSR

    JSR-050JSR-100

    JSR-200JSR-300

    JSR-400JSR-500

    JSR-600JSR-700

    PDF DOWNLOAD

    FEATURES

    - Low NOx type.
    - Exceptionally high heat recovery.
    - Application temperatures to 1500℃.
    - Advanced, unique design giving simple construction.
    - 85% Energy Recovery.

    APPLICATIONS

    - Aluminum Quick Melting Applications.
    - Aluminum Heat Treatment Furnaces.
    - High Temperature Industrial Furnaces.
    - Heating-Up Furnaces.
    - Reheating Furnaces.
    - Heating-Up Furnaces for Hot Forging.

    JSR SERIES REGENERATIVE GAS BURNERS DIRECT FIRED VERSION

    The data contained below is a summary. Curves showing total burner pressure drop vs process temperature are included in this data sheet.However, please refer to JSE for additional data.

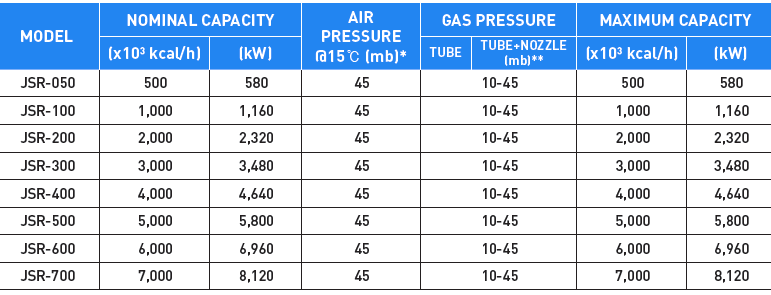

    TECHNICAL DATA

    Minimum supply pressure required measured at the burner under the temperature conditions quoted.
    * Air pressure will vary with degree of heat recovery and pre-heat temperature. See pressure drop curves further on in this data sheet.
    ** Some increase in gas pressure should be allowed for on the nozzle version of up to 50%.

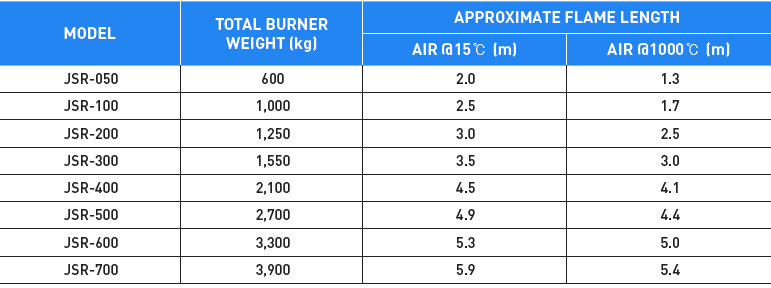

    Flame lengths are based on open tube gas injector for the JSR 050-200 and the disc lance – disc setting maximum – for the JSR 300-700.
    The data above is based on Natural Gas Net. CV 9500 kcal/Nm3.

    The descriptions and specifications are subject to change without notice.

  • JRB-RT

    REGENERATIVE RADIANT TUBE GAS BURNERS JRB-RT

    JRB-RT1JRB-RT2

    JRB-RT3JRB-RT4

    PDF DOWNLOAD

    FEATURES

    - Low NOx type.
    - Exceptionally high heat recovery.
    - Application temperatures up to 1400℃.
    - Advanced, unique design giving simple construction.
    - 85% Energy Recovery.

    APPLICATIONS

    - High Temperature Heat Treatment Furnaces.
    - Carburizing Furnaces.
    - Glass Heat Treatment Furnaces.
    - Salt Bath Heat Treatment Furnaces.
    - Indirect Heating & Drying Furnaces.

    JRB SERIES REGENERATIVE GAS BURNERS INDIRECT FIRED VERSION

    SPECIFICATIONS

    JSE regenerative burners are available in a range from 46 to 151kW.
    Capacity control options are modulating, high/low, on/off and pulse firing.
    A special version of the JRB burners is available for radiant tube firing.
    JSE offers a full combustion engineering service for any process, includung engineering design, construction, installation and commissioning.
    Full technical details can be found in the accompanying data sheets.

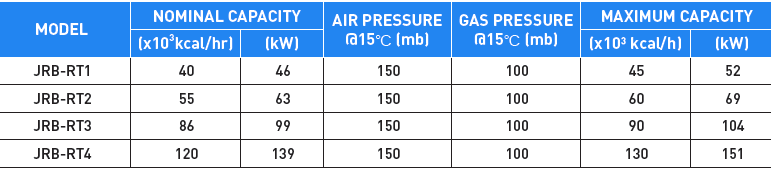

    TECHNICAL DATA

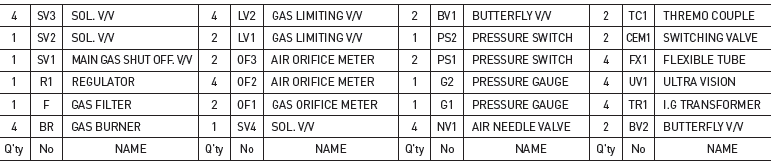

    BURNER FLOW SHEET
