Tubocharger Test Bench

- Hot gas generation through combustion chamber for constant pressure and temperature.
- Wide range and various application for turbocharger.
- Fast data acquisition with RT(Real Time) Controller.
- Available Manual Test/Full automatic test with requirements.
- Precise measuring with coriolis mass flow meter.
- Possibility of special test - high pressure in low temperature.
- Compact oil / water control cart.
- Optimization performance test & thermal shok test and data acquisition & analysis with latest developed LabVIEW program.
- Possibility of customized gas stand system.
- Low NOx with 2 stage burning system.

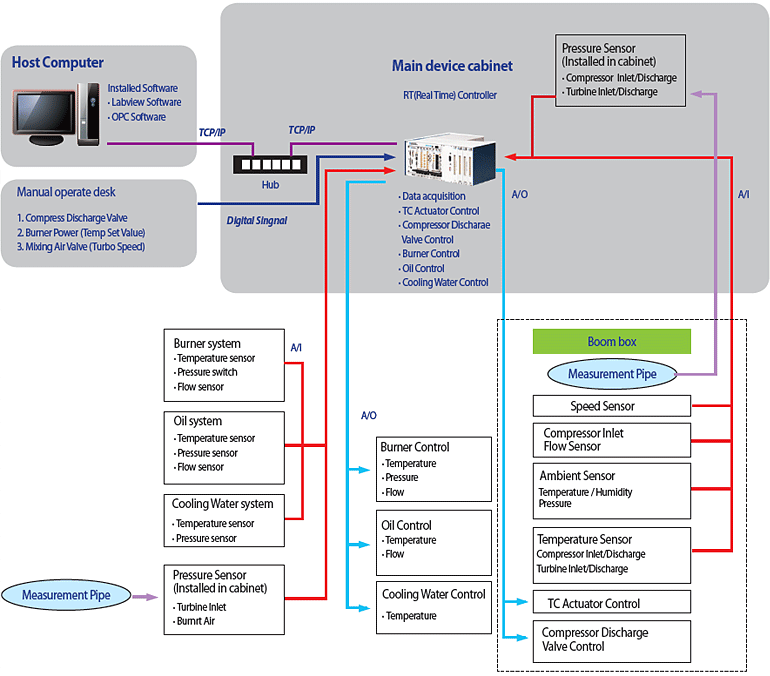

OVERVIEW

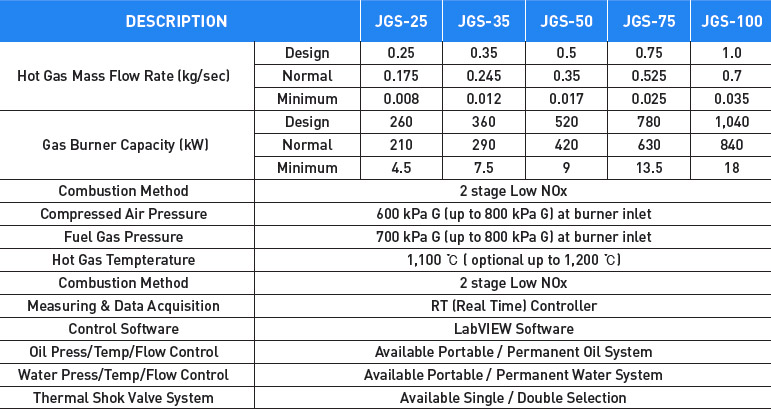

TECHNICAL DATA

The descriptions and specifications are subject to change without notice.

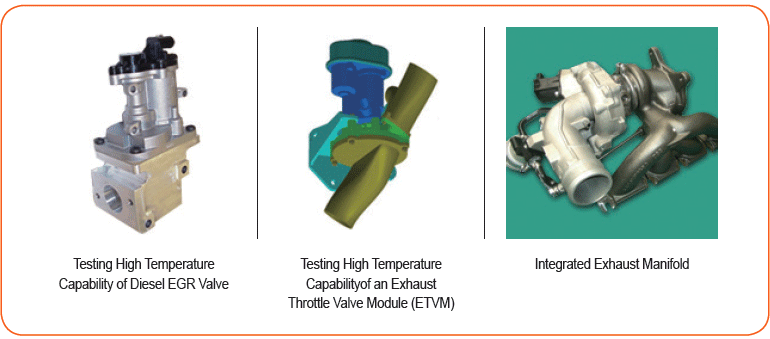

EGR System Test Bench

- Hot gas generation through combustion chamber for constant pressure and temperature.
- Wide range and various application for Exhaust Gas Recirculation System.
- Fast data acquisition with RT(Real Time) Controller.
- Available Manual Test/Full automatic test with requirements.
- Precise measuring with coriolis mass flow meter.
- Possibility of special test, Possibility of customized EGR System.

OVERVIEW

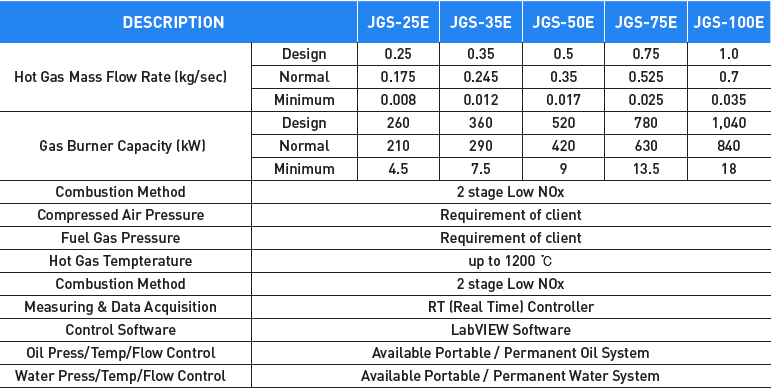

TECHNICAL DATA

The descriptions and specifications are subject to change without notice.
