FEATURES

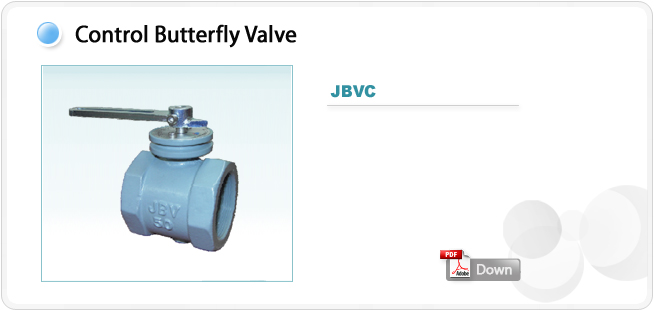

Manual butterfly valve (JBVC)
JINSUNG Valves control the flow of low pressure combustion air or fuel gas to burner systems. Two versions of the
valve are available. The BVC series is available for ambient air service and most fuel gases, such as, natural gas,
propane and butane. Each valve is available in a manual operation version or an automatic version. JBVC valves
are ideal for individual burner or zone control and can be used as a trim valve or to balance individual burners.
Eight threaded sizes air available.

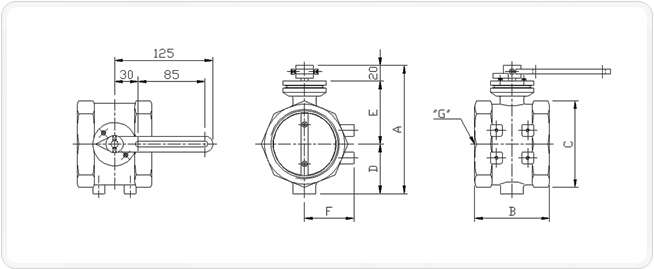

DIMENSION
| |
A |
B |
C |
D |
E |
F |
G |
| 20A |
99 |
75 |
48 |
30 |
49 |
30 |
PT20A |
| 25A |
99 |
75 |
48 |
30 |
49 |
30 |
PT25A |
| 32A |
114 |
80 |
64 |
37 |
57 |
37 |
PT32A |
| 40A |
114 |
80 |
64 |
37 |
57 |
37 |
PT40A |
| 50A |
126 |
85 |
78 |
44 |
70 |
44 |
PT50A |
| 80A |
156 |
95 |
110 |
59 |
77 |
61 |
PT80A |
* The descriptions and specifications are subeject to change without notice.
|
