FEATURES

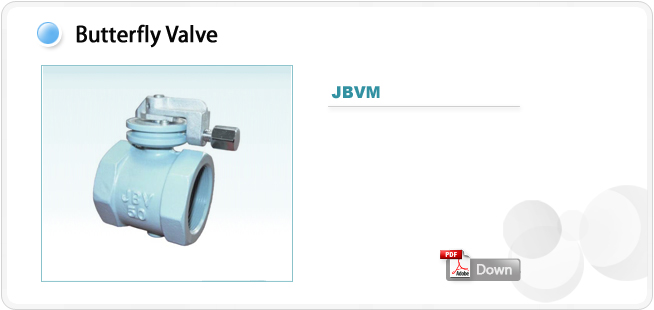

Manual butterfly valve (JBVM)
1. Manual butterfly valve with the opening degree indication for adjusting the flow rate.
2. Handle is fixed with the lock screw after setting the opening degree.
3. Handle is make iron steel, which is strong.
4. Manual butterfly valve has full port design which realizes little pressure loss.
5. Main body is designed to use a pipe wrench easily.

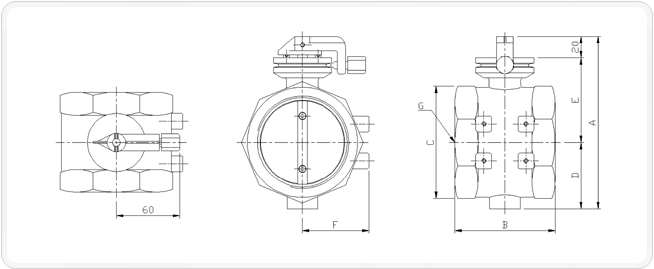

DIMENSION
| |
A |
B |
C |
D |
E |
F |
G |
| 20A |
99 |
75 |
48 |
30 |
49 |
30 |
PT20A |
| 25A |
99 |
75 |
48 |
30 |
49 |
30 |
PT25A |
| 32A |
114 |
80 |
64 |
37 |
57 |
37 |
PT32A |
| 40A |
114 |
80 |
64 |
37 |
57 |
37 |
PT40A |
| 50A |
126 |
85 |
78 |
44 |
70 |
44 |
PT50A |
| 80A |
156 |
95 |
110 |
59 |
77 |
61 |
PT80A |
| 100A |
185 |
120 |
132 |
73 |
92 |
73 |
PT100A |
* The descriptions and specifications are subeject to change without notice.
|
