FEATURES

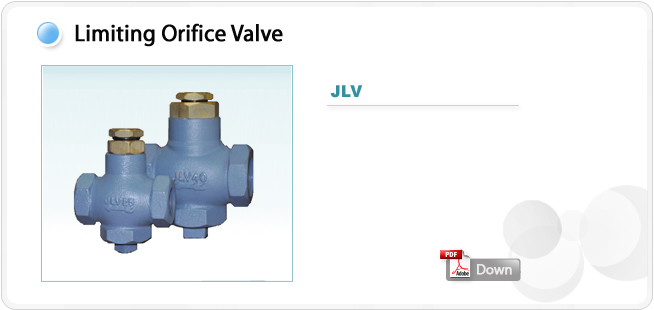

Gas Limiting orifice valve(JLV)
1. Precision machined valve flow piston.
2. Rugged cast-iron body.
3. JLV series can be used as straight through or angle valve.
3. Pressure rated to 25 psig.
The JINSUNG JLV series Limiting Orifice Gas Valves are designed for use with each burner in a multi-Burner
furnace operation. They allow fine ad-justment of individual burners to ensure uniformCombustion at each
burner. The JLV series valves can be used as a straight through or angle type valve as required by the
burner system.
These valves are designed for use with any commercial fuel gas except coke oven gas.

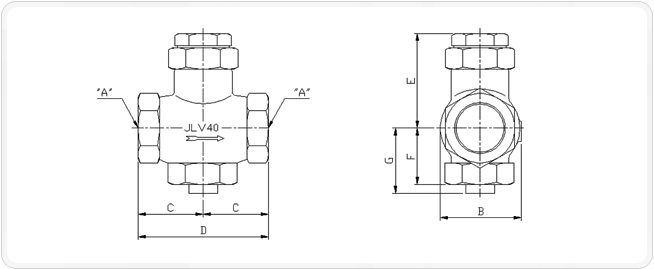

DIMENSION
| |
A |
B |
C |
D |
E |
F |
G |
| 15A |
PF15A |
62 |
54 |
108 |
82 |
45 |
58 |
| 20A |
PF20A |
62 |
54 |
108 |
82 |
45 |
58 |
| 25A |
PF25A |
62 |
54 |
108 |
82 |
45 |
58 |
| 40A |
PF40A |
82 |
68 |
136 |
100 |
58 |
75 |
| 50A |
PF50A |
95 |
74.5 |
149 |
109 |
87 |
104 |
|
