GENERAL INFORMATIONS

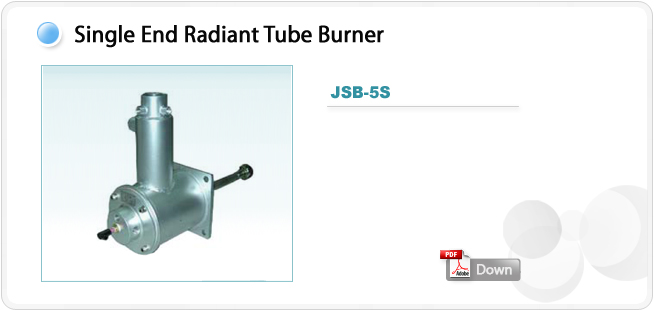

The “JSB-5S” of gas burner has been designed and realised for installation on indirect exchange
distribution pipes into kilns and dryers.
The completely automatic working allows on-off regulations, high/low flame, air/gas modulating.
The last allows to obtain max.-min. regulation ratio until 2:1.
The maximum thermal potentiality is 30kW (26,000kcal/h) while the minimum potentiality can come
up to 15 kW (12,900kcal/h).
Burner structure is painting casting, the parts in contact with flame of refractory steel and Nickel
Chrome alloys.
The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas
instantaneous flows, flame indicating light.
For a correct installation it’s necessary inform our Technical Department about the temperature and
the power of the burner utilization.
These informations are important to dimension section across the combustion head to obtain an
optimal yield burner.

FEATURES

+ Direct spark ignition, ionization flame detection electrode or UV cell.
+ For Natural gas or LPG, other gaseous fuel on request.
+ Turn down ratio 2:1.
+ Easy to install, to start, to operate.

APPLICATIONS

+ All types of application in which a large exchange surface between combustion gas and process
  air is required, in all processes in which it needs that combustion products come into contact with
  material to be treated.
+ Ceramic, Bricks, Refractory:
  - Intermittent and Roller kilns.
  - Continuous and Intermittent Dryers.
+ Iron metallurgic : Kilns for thermal treatments.
+ Surfaces treatment : Painting and Enamelling Kilns.
+ Glass : Hardening ovens.
+ Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesive coating Machines.
+ Food : Cereal Dryers, Roasters.
+ Drying Tobacco.
+ And furthemore, for any application which requires a wide regulation automatic gas burner.
