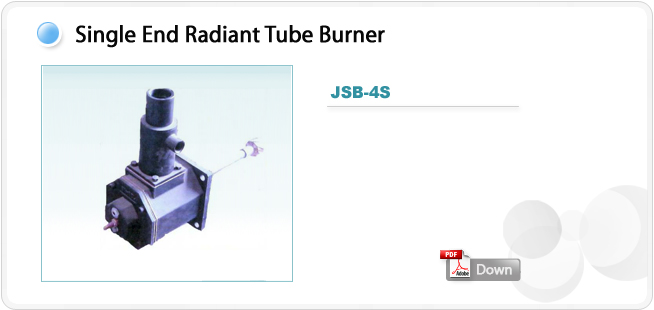

GENERAL INFORMATIONS
It is easy to install for this equipment this can be applied to more various purpose and has a merit of energy saving.
You can easily replace the burner and burner tube.
FUEL
+ LPG
+ LNG
+ Propane Gas
+ Butan Gas

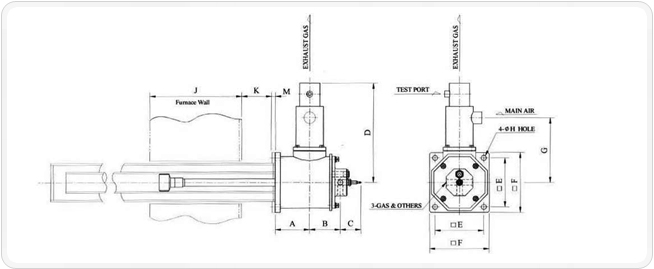

Dimension Unit : mm
| Type |
Tube(A) |
Max. Capacity |
Connection (A) |
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
| Kcal/h (Kw) |
Gas |
Air |
Exh. |
Etc. |
| JSB-4S |
100A |
Max.20,000(25) |
15A |
25A |
50A |
15A |
126 |
114 |
77 |
361 |
180 |
220 |
235 |
19 |
110 |
15 |
| 125A |
Max.25,000(30) |
+ Standard Supply Pressure : Gas 500~700mmH2O (5~7KPa)
Air 700~800mmH2O (7~8KPa)
+ Ignition Method : Direct Ignition by ignition Plug

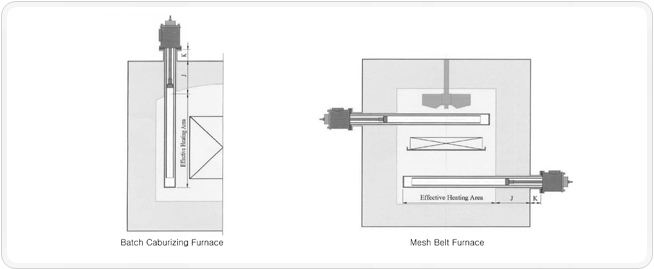

APPLICATION

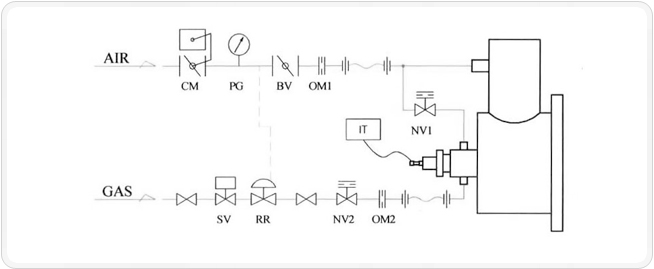

FLOW DIAGRAM
| Air Line |
Gas Line |
| CM |
Control Motor w/Valve |
SV |
Solenoid Valve |
| PG |
Pressure Gauge |
RR |
Ratio Regulator |
| BV |
Butterfly Valve |
NV1 |
Needle Valve |
| OM1 |
Orifice Meter |
NV2 |
Needle Valve |
| NV1 |
Needle Valve |
OM2 |
Orifice Meter |
| |
|
IT |
Ignition Transformer |
+ The descriptions and specifications are subeject to change without notice.
