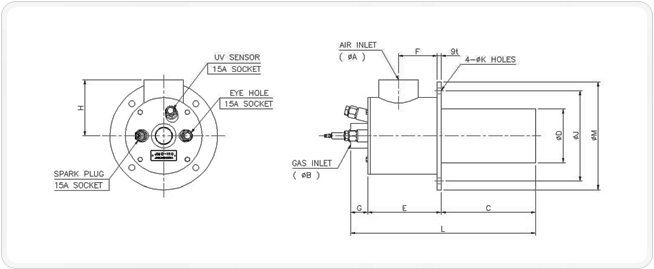

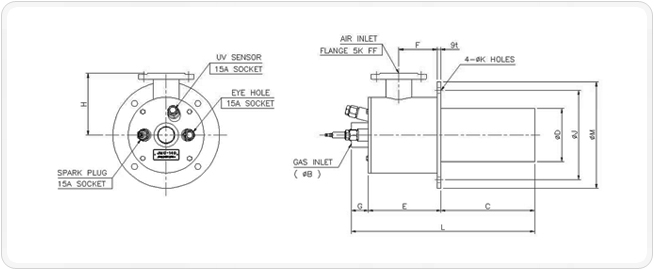

JMG

GENERAL INFORMATIONS

The "JMG" gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power (on request). It was designed for the installation in all the process in which it is necessary to obtain a deeply oxidizing combustion to limit working temperature. The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The last allows to obtain max.-min. regulation ratio until 15:1. The maximum thermal potentiality is 1,569kW (1,350,000kcal/h) while the minimum potentiality can come up to 5.8kW (5,000kcal/h). Combustion air temperature required for this burner can change from room temperature until 300 °C. A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by EN 676 regulations. Burner structure is painting casting, the body is of iron, the bottom of aluminum, the parts in contact with flame of refractory steel and Nickel Chrome alloys. The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas instantaneous flows, flame indicating light.

FEATURES

+ Direct spark ignition, ionization flame detection electrode or U.V cell.
+ For natural gas or LPG, other gaseous fuel on request.
+ Max.-min. ratio 15:1
+ Available as complete version with gas ramp, according to EN 676 on right or left hand.
+ Easy to install, to start, to operate.

APPLICATIONS

+ All types of kilns, suitable for oxidative, stoichiometric or reducing combustion.
+ Ceramic, Bricks, Refractory:
   - Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
   - Continuous and Intermittent Dryers.
+ Iron metallurgic Industry.
+ Surfaces Treatment.
+ Glass : Hardening ovens.
+ Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesivecoating Machines.
+ Food : Cereal Dryers, Roasters.
+ Drying Tobacco etc.
+ And furthemore, for any application which requires a wide regulation automatic gas burner,capable of operating in a strong vacuum or with strong counter-pressure.

TECHNICAL DATA

The above mentioned performance data are described at their maximum power. Pressure showed are guidelines only.
Gas pressures are refer to Methane gas.

* Stoichiometric conditions
Performance data and dimensions are guidelines only.

TECHNICAL DATA

The above mentioned performance data are described at their maximum power. Pressure showed areguidelines only.
Gas pressures are refer to Methane gas.

* Stoichiometric conditions
Performance data and dimensions are guidelines only.

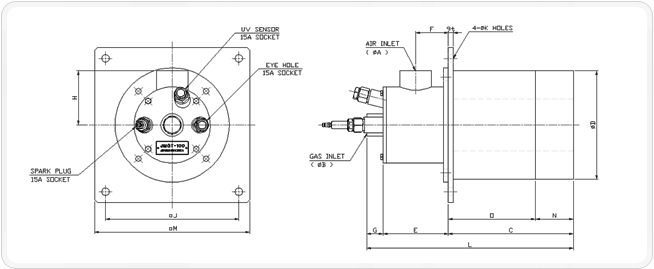

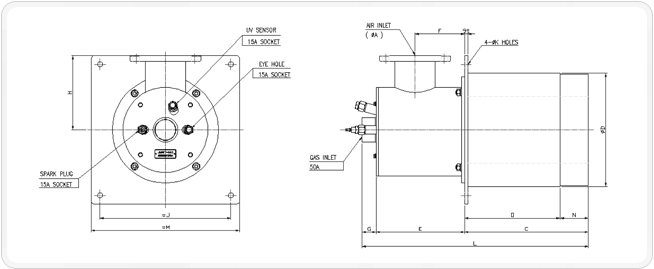

JMGT

GENERAL INFORMATIONS

The “JMGT” gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power (on request). It was designed for the installation in all the process in which it is necessary to obtain a deeply oxidizing combustion to limit working temperature. The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The last allows to obtain max.-min. regulation ratio until 15:1. The maximum thermal potentiality is 679kW (600,000kcal/h) while the minimum potentiality can come up to 5.8kW(5,000kcal/h). Combustion air temperature required for this burner can change from room temperature until 300℃. A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by EN 676 regulations. Burner structure is painting casting, the body is of iron, the bottom of aluminum, the parts in contact with flame of refractory steel and Nickel Chrome alloys. The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas instantaneous flows, flame indicating light.

FEATURES

+ Direct spark ignition, ionization flame detection electrode or U.V cell.
+ For natural gas or LPG, other gaseous fuel on request.
+ Max.-min. ratio 15:1
+ Available as complete version with gas ramp, according to EN 676 on right or left hand.
+ Easy to install, to start, to operate.

APPLICATIONS

+ All types of kilns, suitable for oxidative, stoichiometric or reducing combustion.
+ Ceramic, Bricks, Refractory:
   - Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
   - Continuous and Intermittent Dryers.
+ Iron metallurgic Industry.
+ Surfaces Treatment.
+ Glass : Hardening ovens.
+ Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesivecoating Machines.
+ Food : Cereal Dryers, Roasters.
+ Drying Tobacco etc.
+ And furthemore, for any application which requires a wide regulation automatic gas burner,capable of operating
in a strong vacuum or with strong counter-pressure.

TECHNICAL DATA

TECHNICAL DATA

The above mentioned performance data are described at their maximum power. Pressure showed are guidelines only.
Gas pressures are refer to Methane gas.
* Stoichiometric conditions
Performance data and dimensions are guidelines only.

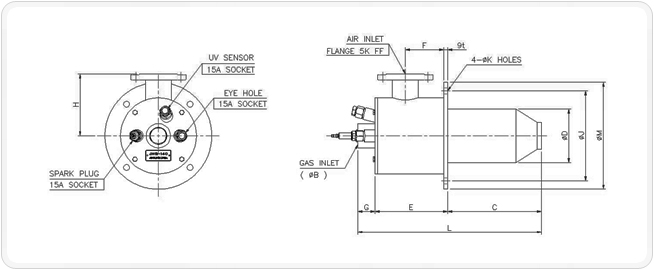

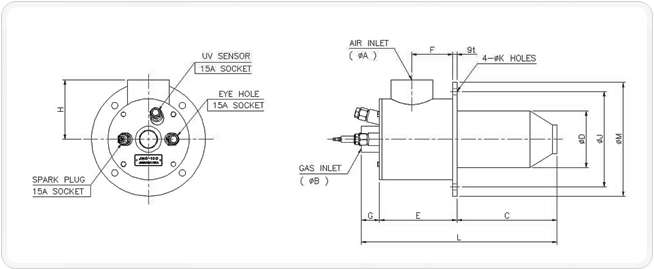

JHG

GENERAL INFORMATIONS

The "JHG" gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power (on request). It was designed for the installation in all the process in which it is necessary to obtain a deeply oxidizing combustion to limit working temperature. The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The last allows to obtain max.-min. regulation ratio until 15:1. The maximum thermal potentiality is 1,569kW (1,350,000kcal/h) while the minimum potentiality can come up to 5.8kW (5,000kcal/h). Combustion air temperature required for this burner can change from room temperature until 300 °C. A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by EN 676 regulations. Burner structure is painting casting, the body is of iron, the bottom of aluminum, the parts in contact with flame of refractory steel and Nickel Chrome alloys. The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas instantaneous flows, flame indicating light.

FEATURES

+ Direct spark ignition, ionization flame detection electrode or U.V cell.
+ For natural gas or LPG, other gaseous fuel on request.
+ Max.-min. ratio 15:1
+ Available as complete version with gas ramp, according to EN 676 on right or left hand.
+ Easy to install, to start, to operate.

APPLICATIONS

+ All types of kilns, suitable for oxidative, stoichiometric or reducing combustion.
+ Ceramic, Bricks, Refractory:
   - Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
   - Continuous and Intermittent Dryers.
+ Iron metallurgic Industry.
+ Surfaces Treatment.
+ Glass : Hardening ovens.
+ Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesivecoating Machines.
+ Food : Cereal Dryers, Roasters.
+ Drying Tobacco etc.
+ And furthemore, for any application which requires a wide regulation automatic gas burner,capable of operating
in a strong vacuum or with strong counter-pressure.

TECHNICAL DATA

The above mentioned performance data are described at their maximum power. Pressure showed are guidelines only.
Gas pressures are refer to Methane gas.
* Stoichiometric conditions
Performance data and dimensions are guidelines only.

TECHNICAL DATA

The above mentioned performance data are described at their maximum power. Pressure showed areguidelines only.
Gas pressures are refer to Methane gas.
* Stoichiometric conditions
Performance data and dimensions are guidelines only.

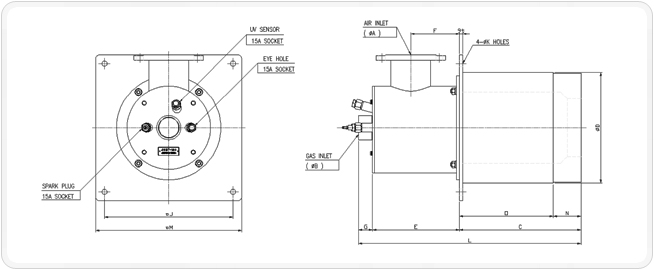

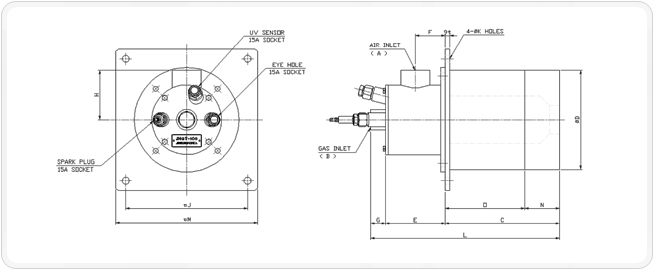

JHGT

GENERAL INFORMATIONS

The “JHGT” gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power (on request). It was designed for the installation in all the process in which it is necessary to obtain a deeply oxidizing combustion to limit working temperature.
The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The last allows to obtain max.-min. regulation ratio until 15:1.
The maximum thermal potentiality is 679kW (600,000kcal/h) while the minimum potentiality can come up to 5.8kW(5,000kcal/h).

Combustion air temperature required for this burner can change from room temperature until 300℃.
A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by EN 676 regulations.
Burner structure is painting casting, the body is of iron, the bottom of aluminum, the parts in contact with flame of refractory steel and Nickel Chrome alloys. The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas instantaneous flows, flame indicating light.

FEATURES

+ Direct spark ignition, ionization flame detection electrode or U.V cell.
+ For natural gas or LPG, other gaseous fuel on request.
+ Max.-min. ratio 15:1
+ Available as complete version with gas ramp, according to EN 676 on right or left hand.
+ Easy to install, to start, to operate.

APPLICATIONS

+ All types of kilns, suitable for oxidative, stoichiometric or reducing combustion.
+ Ceramic, Bricks, Refractory:
   - Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
   - Continuous and Intermittent Dryers.
+ Iron metallurgic Industry.
+ Surfaces Treatment.
+ Glass : Hardening ovens.
+ Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesivecoating Machines.
+ Food : Cereal Dryers, Roasters.
+ Drying Tobacco etc.
+ And furthemore, for any application which requires a wide regulation automatic gas burner,capable of operating in a strong vacuum or with strong counter-pressure.

TECHNICAL DATA

TECHNICAL DATA

The above mentioned performance data are described at their maximum power. Pressure showed areguidelines only.
Gas pressures are refer to Methane gas.
* Stoichiometric conditions
Performance data and dimensions are guidelines only.

JHMG

GENERAL INFORMATIONS

The “JHGT” gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power (on request). It was designed for the installation in all the process in which it is necessary to obtain a deeply oxidizing combustion to limit working temperature. The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The last allows to obtain max.-min. regulation ratio until 15:1. The maximum thermal potentiality is 679kW (600,000kcal/h) while the minimum potentiality can come up to 5.8kW(5,000kcal/h). Combustion air temperature required for this burner can change from room temperature until 300℃. A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by EN 676 regulations. Burner structure is painting casting, the body is of iron, the bottom of aluminum, the parts in contact with flame of refractory steel and Nickel Chrome alloys. The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas instantaneous flows, flame indicating light.

FEATURES

+ Direct spark ignition, ionization flame detection electrode or U.V cell.
+ For natural gas or LPG, other gaseous fuel on request.
+ Max.-min. ratio 15:1
+ Available as complete version with gas ramp, according to EN 676 on right or left hand.
+ Easy to install, to start, to operate.

APPLICATIONS

+ All types of kilns, suitable for oxidative, stoichiometric or reducing combustion.
+ Ceramic, Bricks, Refractory:
   - Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
   - Continuous and Intermittent Dryers.
+ Iron metallurgic Industry.
+ Surfaces Treatment.
+ Glass : Hardening ovens.
+ Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesivecoating Machines.
+ Food : Cereal Dryers, Roasters.
+ Drying Tobacco etc.V + And furthemore, for any application which requires a wide regulation automatic gas burner,capable of operating in a strong vacuum or with strong counter-pressure.

TECHNICAL DATA

The above mentioned performance data are described at their maximum power. Pressure showed areguidelines only.
Gas pressures are refer to Methane gas.
* Stoichiometric conditions
Performance data and dimensions are guidelines only.

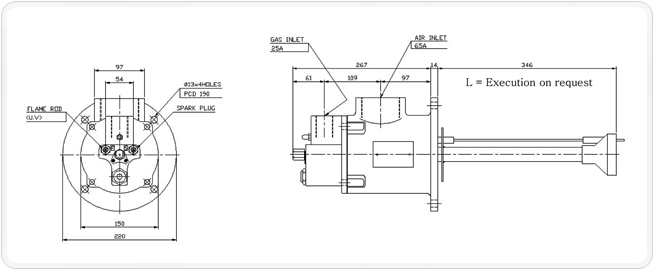

JRT

GENERAL INFORMATIONS

The “JRT” series of gas burner has been designed and realised for installation on indirect exchange distribution pipes into kilns and dryers. The completely automatic working allows on-off regulations, high/low flame, air/gas modulating.

The last allows to obtain max.-min. regulation ratio until 8:1.
The maximum thermal potentiality is 175kW (150,000kcal/h) while the minimum potentiality can come up to 7 kW (6,000kcal/h).
Combustion air temperature required for this burner can change from room temperature until 350℃.
A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by regulations.

Burner structure is painting casting, the parts in contact with flame of refractory steel and Nickel Chrome alloys. The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas instantaneous flows, flame indicating light.
For a correct installation it’s necessary inform our Technical Department about the temperature and the power of the burner utilization.
These information are important to dimension section across the combustion head to obtain an optimal yield burner.

FEATURES

+ Direct spark ignition, ionization flame detection electrode or U.V cell.
+ For natural gas or LPG, other gaseous fuel on request.
+ Turn down ratio 8 to 1. + Easy to install, to start, to operate.

APPLICATIONS

+ All types of application in which a large exchange surface between combustion gas and process air is required,
in all processes in which it needs that combustion products come into contact with material to be treated.
+ Ceramic, Bricks, Refractory:
   - Intermittent and Roller kilns.
   - Continuous and Intermittent Dryers.
+ Iron metallurgic : Kilns for thermal treatments.
+ Surfaces treatment : Painting and Enamelling Kilns.
+ Glass : Hardening ovens.
+ Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesive coating Machines.
+ Food : Cereal Dryers, Roasters.
+ Drying Tobacco.
+ And furthemore, for any application which requires a wide regulation automatic gas burner.

TECHNICAL DATA

The above mentioned performance data are described at their maximum power. Pressure showed are guidelines only.
Gas pressures are refer to Methane gas.
* Stoichiometric conditions
Performance data and dimensions are guidelines only.

JSB

GENERAL INFORMATIONS

It is easy to install for this equipment this can be applied to more various purpose and has a merit of energy saving. You can easily replace the burner and burner tube.

FUEL

+ LPG
+ LNG
+ Propane Gas
+ Butan Gas

APPLICATIONS

+ All types of application in which a large exchange surface between combustion gas and process air is required,
in all processes in which it needs that combustion products come into contact with material to be treated.
+ Ceramic, Bricks, Refractory:
   - Intermittent and Roller kilns.
   - Continuous and Intermittent Dryers.
+ Iron metallurgic : Kilns for thermal treatments.
+ Surfaces treatment : Painting and Enamelling Kilns.
+ Glass : Hardening ovens.
+ Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesive coating Machines.
+ Food : Cereal Dryers, Roasters.
+ Drying Tobacco.
+ And furthemore, for any application which requires a wide regulation automatic gas burner.

TECHNICAL DATA

The above mentioned performance data are described at their maximum power. Pressure showed are guidelines only.
Gas pressures are refer to Methane gas.
* Stoichiometric conditions
Performance data and dimensions are guidelines only.

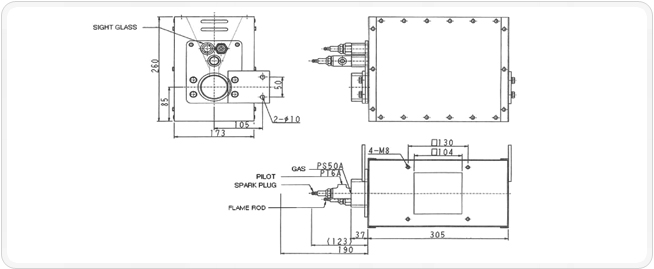

JDC

GENERAL INFORMATIONS

The “JDC…” gas burner represents a new concept of direct heating air for industrial process optimizing mixing velocity of warm gases produced by combustion, with process air.
They are properly classified as “head mixing burner”.
For their suitable working, they need low pressure of air and gas.
“Linear” and “cross” models are available; these models, correctly assembled, may represent a never ending variety of adaptable conformation to every conduct shape (size) and every application required. The basis unit include housing burner with ignition probe, pilot burner and integrated ionization electrode, or UV detection cell.

Three different construction modes are available depending on working process air temperature”
B - Low Working Temp. T max. (upstream burner) = 350℃
T max. (downstream burner) = 500℃
M - Average Working Temp. T max. (upstream burner) = 600℃
T max. (downstream burner) = 700℃
A - High Working Temp. T max. (upstream burner) = 700℃
T max. (downstream burner) = 800℃

Combustion air may be supplied directly from the process or from a blower (depending of installation type). In case that air of combustion is supplyed by the process, the burner is called “OPEN-BACK”.
Process air must have a minimum oxigen tenor of 17% with a flow speed of 20m/s; the pressure drop in this application if 2.5 mbar. If combustion air is supplyed by a blower, burner module will be equipped with a connection flange; in this case low oxigen tenor won’t prevent burner to have a good combustion.
Anyway in order to have a good thermal distribution, it will be necessary to have process air speed between 10m/s and 20m/s. In order to allow a good firing operation, a straigth duct section of about 1m, before and after the burner, should be provided. Burner thermal capacity depends on linear dimensions and may be easyly calculated with the help of the following table:

● Straight Module : 233Kw (200,000Kcal/hr)
Turndown rate depends on regulation type as follow:
● Gas/Air regulation (costant combustion ratio) - 10:1
● Gas regulation (costant air flow) ? 10:1

Materials used in burner construction may vary depending on the kind of use it is designed for and are generally made of refractory steel and/or Nickel-Crhome alloys.

FEATURES

+ Main module direct electrical ignition thanks to electrode:
   or indirect thanks to a pilot incorporated in burner structure.
+ Flame detection with ionization electrode or UV cell.
+ Standard executions for Methane gas and LPG, other gaseous fuel on request.

APPLICATIONS

+ All types of application in which a large exchange surface between combustion gas and process air is required, and it’s necessary a fast and uniform mixing.
+ Ceramic, Bricks, Refractory: Intermittent and continuous dryers.
+ Surfaces treatment: Painting kilns, enamelling kilns and dryers.
+ Printing and Packing: Air Heaters for Rotogravures, Flexographic and Coupling and adhesive coating Machines.
+ Food: Cereal, fodder and tobacco dryers, roasters.
+ Moreover for all those applications in which a gas burner at large regulation and automatic working is required.

TECHNICAL DATA

The mentioned performance data are described at their maximum power. Pressure showed are guidelines only.
Gas pressures are refer to Methane gas.
* Flame length has conditioned by process air speed (~10m/s) and by the combustion air in excess to 30%.
** The load loss onto burner depend to the process air speed. The load loss indicated are refered to a speed of 10m/s
Performance data and dimensions are guidelines only.
+The descriptions and specifications are subeject to change without notice.
